CDL12P loudspeakers are ideal for touring bands and mobile DJs who want scalability, outstanding coverage, and exceptional sonic performance in a portable design. Thanks to a unique, patent-pending driver design, the CDL12P fills venues with articulate speech and music reproduction while delivering consistent SPL throughout the frequency-response range.

Constant Directivity design uses a vertical array of eight 2-inch drivers instead of a horn to accurately disperse high-frequency and midrange frequencies for better clarity and articulation; 15˚ vertical x 120˚ horizontal dispersion provides focused throw with wide, consistent coverage; combine up to six CDL12P’s in a vertical array for thunderous SPLs with 90˚ (V) x 120˚ (H) dispersion; ideal for both mobile applications and permanent installations

FEATURES

• Continuous Directivity constant curve array with eight 2-inch cone drivers disperse sound an amazing 120 degrees horizontally
• 15˚ vertical directivity can be extended from 30˚ up to 90˚ with additional arrayable CDL12Ps
• 12-inch long-throw LF transducer with 2.5-inch voice coil
• Low crossover point minimizes comb filtering and enhances line array intelligibility
• 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
• Locking AC Connector in and out
• Balanced XLR input and output
• Signal, -3 dB, Limiter Protection, and Clip monitoring
• Easy-to-use DSP Controls: Array Mode (1-6 boxes), 90 Hz High Pass Filter, Sub Mode (Off, CDL18s, ULT18, or AIR18s)

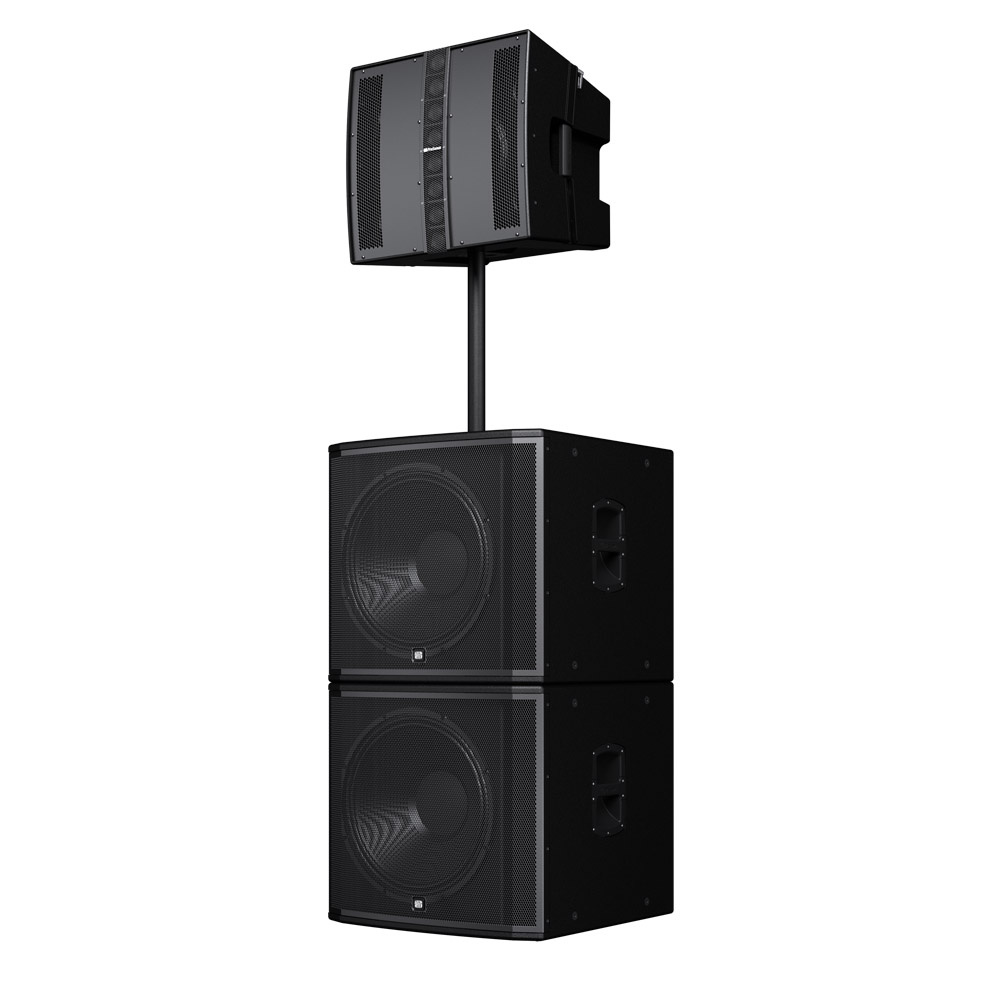

• 2-position pole mount for use with up to two CDL12P on a tripod or atop an 18-inch
• PreSonus subwoofer (Note: a CDL18s must be used for when two CDL12Ps are arrayed)

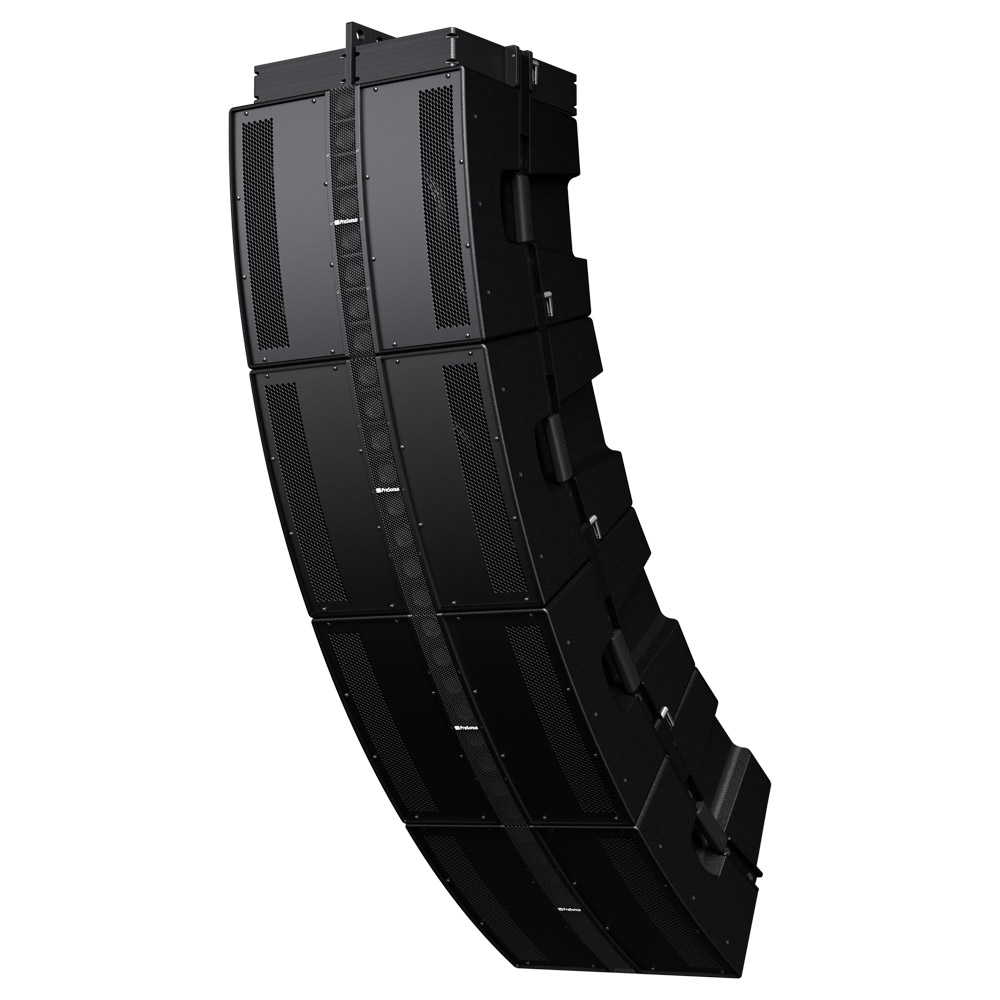

• Integrated flyware to create an array of up to six CDL12P’s
• Easy-to-handle, compact form factor and 63 lb. weight
