LIGHT ON WEIGHT. HEAVY ON POWER

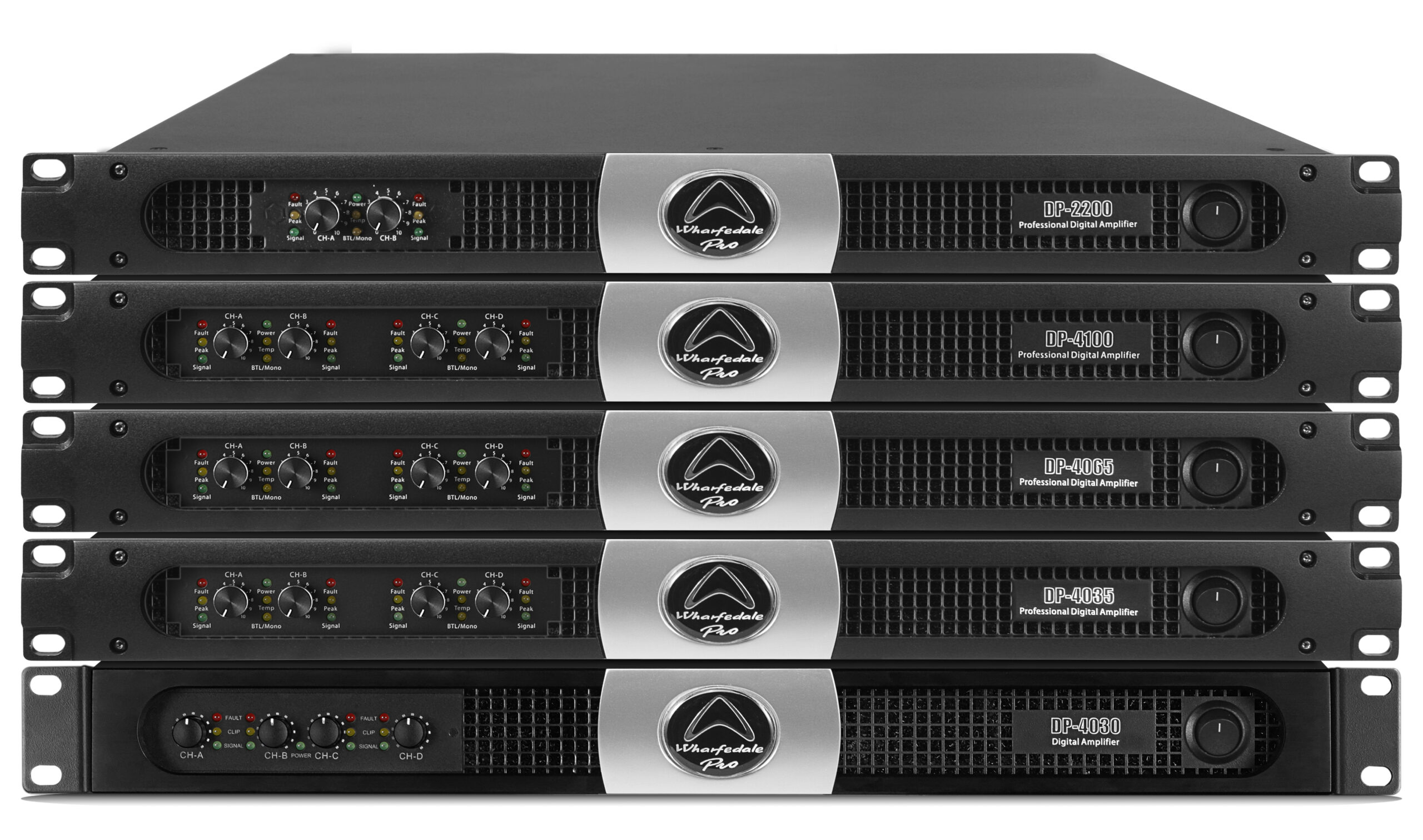

Suitable for professional live sound reinforcement or fixed installations, our DP series of digital amplifiers features 5 models that deliver between 595 w and 3400 w per channel into 4 Ω. Four of these new models are 4 channel amplifiers which allow installers to create discrete and versatile systems.

The DP Series includes the new DP-4030, a straightforward cost effective four channel Class-D amplifier capable of delivering a stable 675w/channel at 2 ohms. This no-frills entry to the line is perfect for any installation where affordable reliable and efficient multichannel amplification is required.

Other amplifiers in the DP Series include two and four channel models up to 4750w per channel in a single rack space, and all are bridgeable to 4 ohms, and stable down to 2ohm loads. Select models also operate at 70v for installation applications.

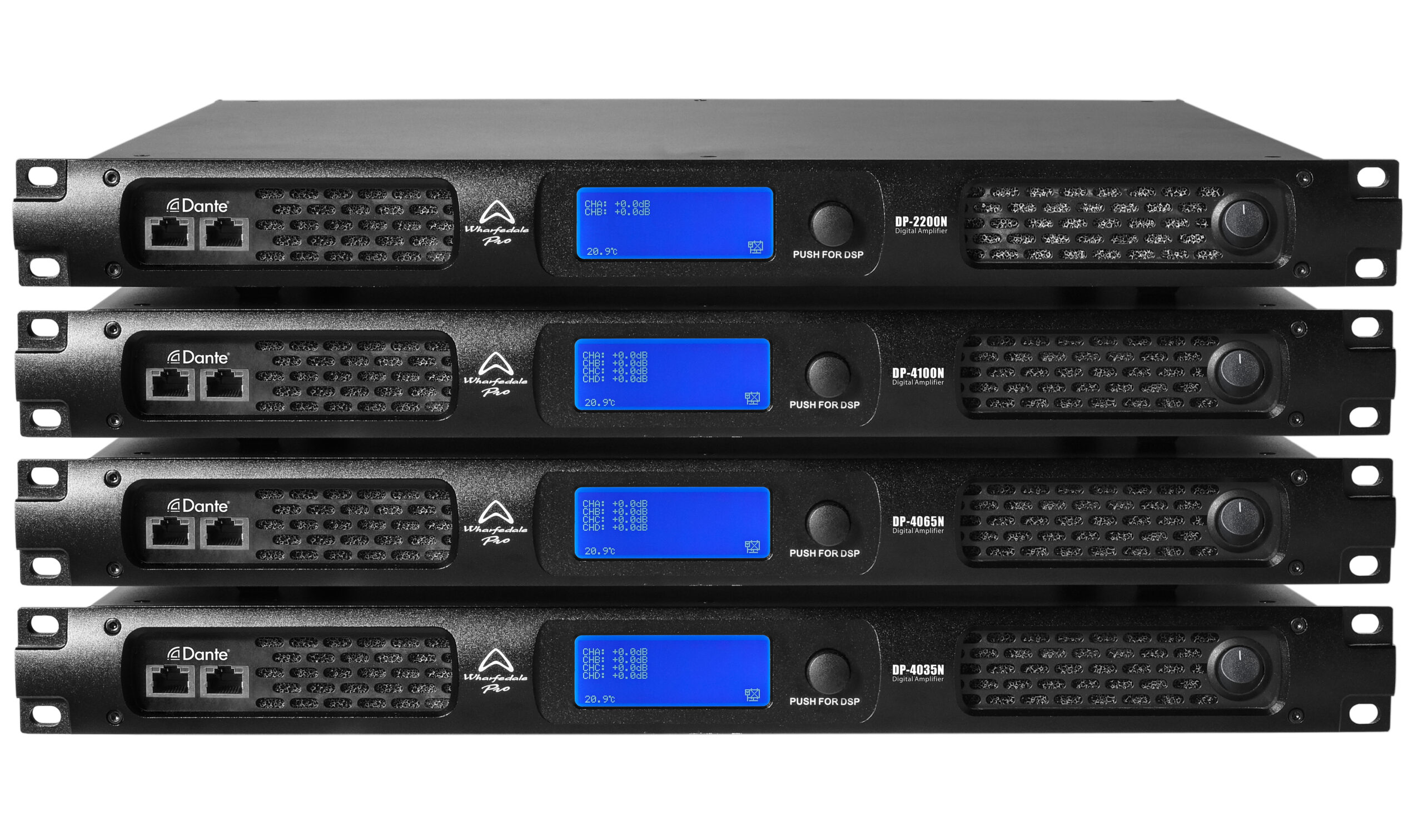

DP-F Series amplifiers have been engineered for mid-sized venues, rental and touring applications where enormous output power and increased stability down to 2 ohms is required. Enhanced DSP includes FIR filtering with 512 taps delivering linear phase response. DP-N Series bring all of the DSP and FIR filtering of the DP-F Series to a Dante enabled AoIP connected system.

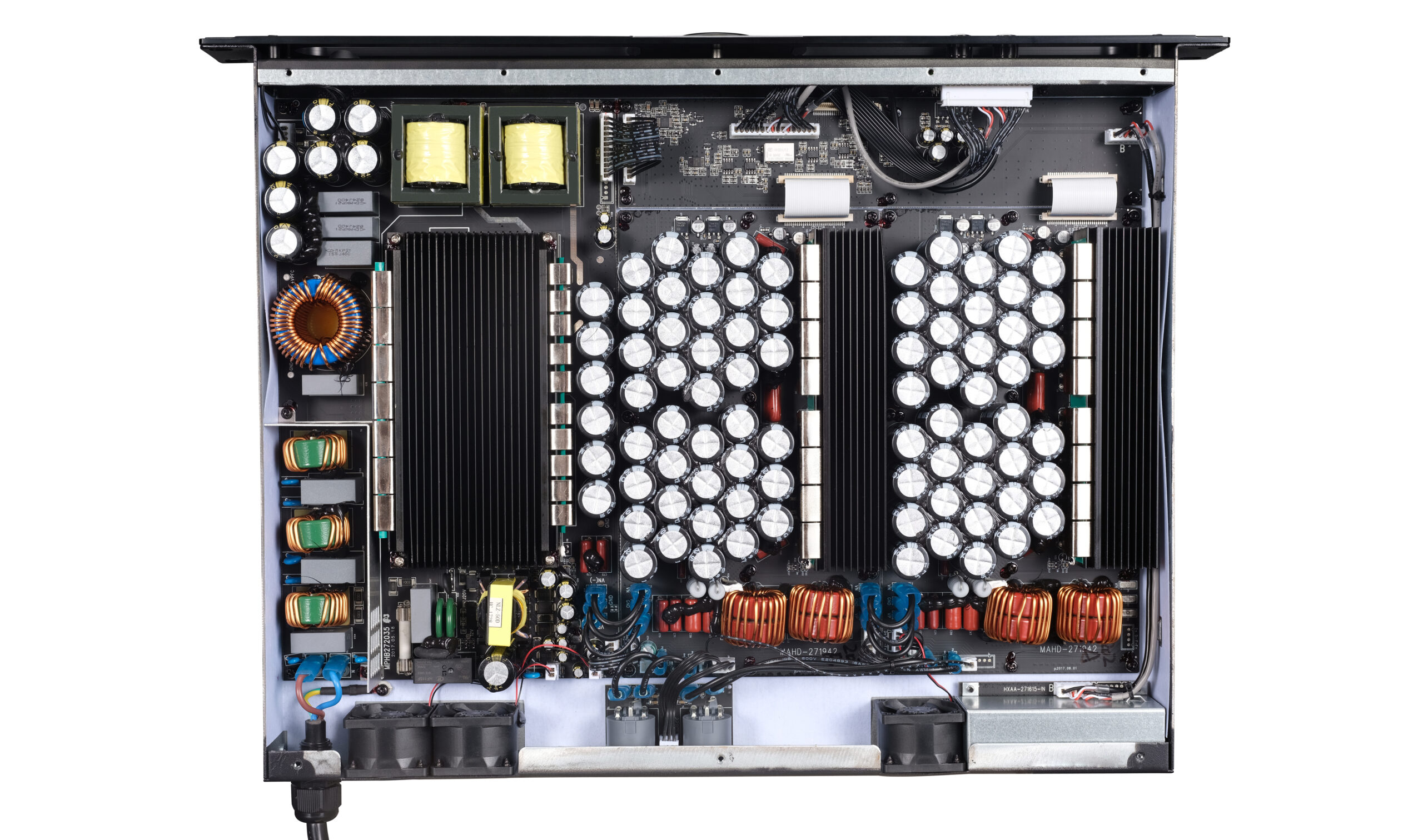

All models feature an advanced switch mode power supply and super-efficient Class D topology which delivers high power with low distortion. The DP series are incredibly light in weight. Starting from only 8.14 kg, installers and performers will really appreciate the ease this brings to transportation.

PROTECTION

A full suite of protection circuitry includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long term system reliability and peace of mind should the worst ever happen. The variable speed fans keep the amplifier rack quiet when not in use – and cool while its running at high volume.

QUALITY COMPONENTS

Using Neutrik audio connectors and the highest quality internal fans, the DP series are not only light weight but extremely high quality. Reliability of any amplifier is essential and DP series have been specifically developed to deliver high power outputs in extreme professional conditions

MODES AND SWITCHES

The DP Series feature stereo, bridge and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single multi-channel DP to power your whole sound system equally.

Mono mode saves external cabling by splitting a single input to feed two channels of the amplifier. Gains can be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue.

The DP Series features XLR inputs with a maximum input level of +22 dBu allowing for integration with any typical professional audio system.

Features:

• Super light weight
• Drives multiple 8Ω and 16Ω loudspeakers and proven stable down to 2Ω
• Ultra-quiet variable speed fans and advanced protection circuitry
• 70 V / 100 V compatible models
• One 2 channel stereo model generating 6800 watts @ 8 Ω BTL. available
• DP and DP-F Series are arriving February 2023 with the Dante enabled DP-N Series expected April / May 2023.
